8AImAPT100
INPUT MODULE

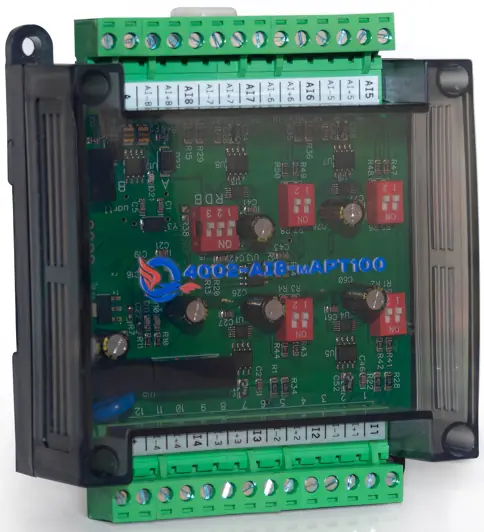

8AImAPT100 analog input module
Analog input module 0-20 mA, Pt-100
8 inputsRS-48524 V DC
The module is designed for use in process control systems. It operates as a Modbus RTU slave. RS-485 interface with galvanic isolation. It has 8 analog input channels.
Documentation · PDF
Documentation is available in Russian.
TECHNICAL SPECIFICATIONS
8AImAPT100
| Power supply | 24 V DC, 5 W |
|---|---|
| Galvanic isolation of power supply and interface | 1500 V, 50 Hz |
| Inputs, 8 pcs | Pt-100, 0-20 mA, 4-20 mA |
| Interface | RS-485 |
| Modbus RTU protocol | 2.4-115.2 kbaud, address 1-247 |
| Overall dimensions, max | 95 × 90 × 40 mm |
| Weight, max | 250 g |
| Basic fiducial error limit | Pt-100: ±0.5% mA: ±0.25% |
| Connected devices | 100P (α=0.00385°), 0-20 mA, 4-20 mA |
| Climatic version B4 | T from 0 to 50 °C, humidity 80% at 35 °C |
