ДИ-3-24-5-10М
SENSOR

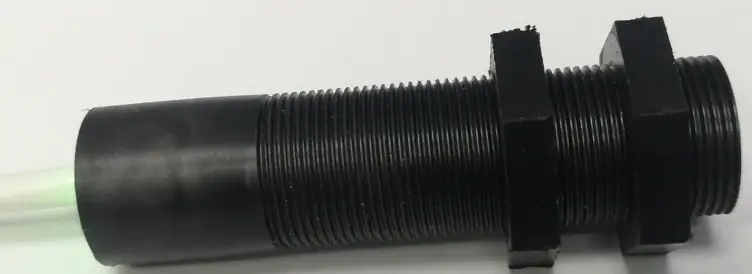

ДИ-3-24-5-10М inductive sensor
Inductive sensor for car washes (WashTec compatible)
NO / NC
The sensor is designed for use in car wash control systems.
Documentation · PDF
Documentation is available in Russian.
TECHNICAL SPECIFICATIONS
ДИ-3-24-5-10М
| Housing material | PTFE (fluoroplastic) |
|---|---|
| Thread | M18 × 1.5 |
| Cable | KDVVG (КДВВГ) 3 × 0.5, 10 m |
| Cable bending radius | at least 40 mm |
| Output state indication | green LED |
| Switching distance | 6 mm, non-flush mounting |
| Electrical design | DC PNP/NPN |
| Operating voltage | 24 V |
| Current | 9 mA |
| Protection class | II |
| Pulse input | Yes |
| Output | NO/NC |
| Short-circuit protection | pulsed |
| Switching frequency | 300 Hz |
| Ambient temperature | 0...45 °C |
